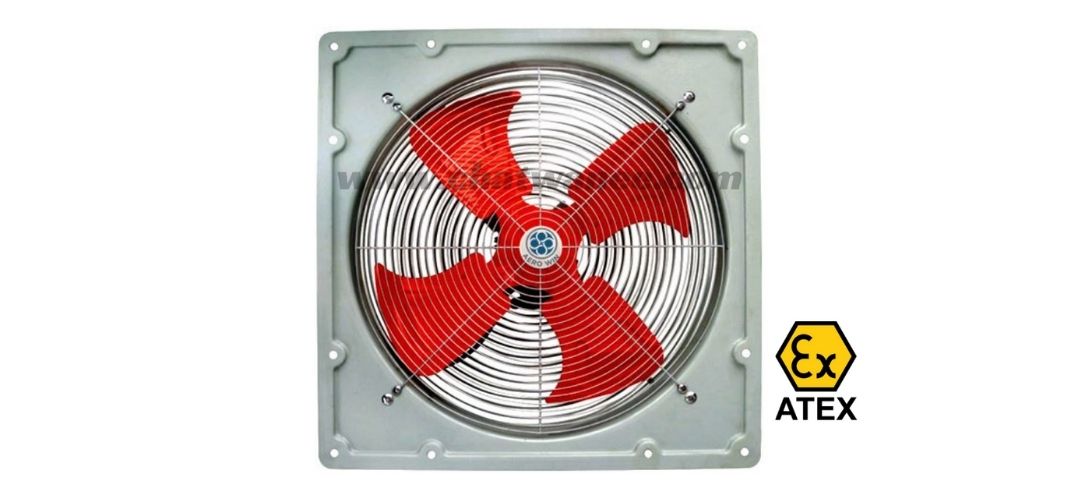

Explosion-Proof Extraction Fan
BPS series flameproof industrial fan applied in the condition of explosion-proof gas compound with factory Ⅱ type , Grade A , B and the temperature T1-T4.It widely used for ventilation and sunstroke in office, oil, military industry, chemical industry, medicine, metallurgy, etc. We also get explosion-proof certificate. The impeller made of aluminum alloy.has strong points such as operate steadily, beauty appearance, rational structure, etc.The Explosion-proof Mark is.
| Model | Diameter (mm) |
Voltage (V) |
Frequeancy (Hz) |
Speed (r/min) |
Watts (W) |
Capacity (m3/min) |
Static (pa) |
| BPS-50 | 500 (20") | 1100 | 50/60 | 1400/1720 | 370/450 | 100/120 | 100/140 |
| BPS-50 | 500 (20") | 220/240 | 50/60 | 1400/1720 | 370/450 | 100/120 | 100/140 |
| BPS-60 | 600 (24") | 1100 | 50/60 | 1400/1720 | 550/700 | 150/170 | 110/150 |
| BPS-60 | 600 (24") | 220/240 | 50/60 | 1400/1720 | 550/700 | 150/170 | 110/150 |
